rackstack

A parametric 3d-printable mini rack system

Mount Anything: Perfect for organizing SBCs, mini PCs, small switches, power hubs, etc.
Fully customizable: Fully written in OpenSCAD. Everything, from the dimensions of the rack, to the roundness of the corners, can be modified with a simple code change.
Printable from home: Designed to be printed with conventional FDM printers. Requires minimal supports when printing, and final assembly needs only a few easy-to-source parts.
No cage nuts! Sliding hex nut design for the front rails allows one to easily mount items without dealing with cage nuts.
Stackable: Individual racks can be easily stacked and fastened together. Mix and match different color and design combinations!

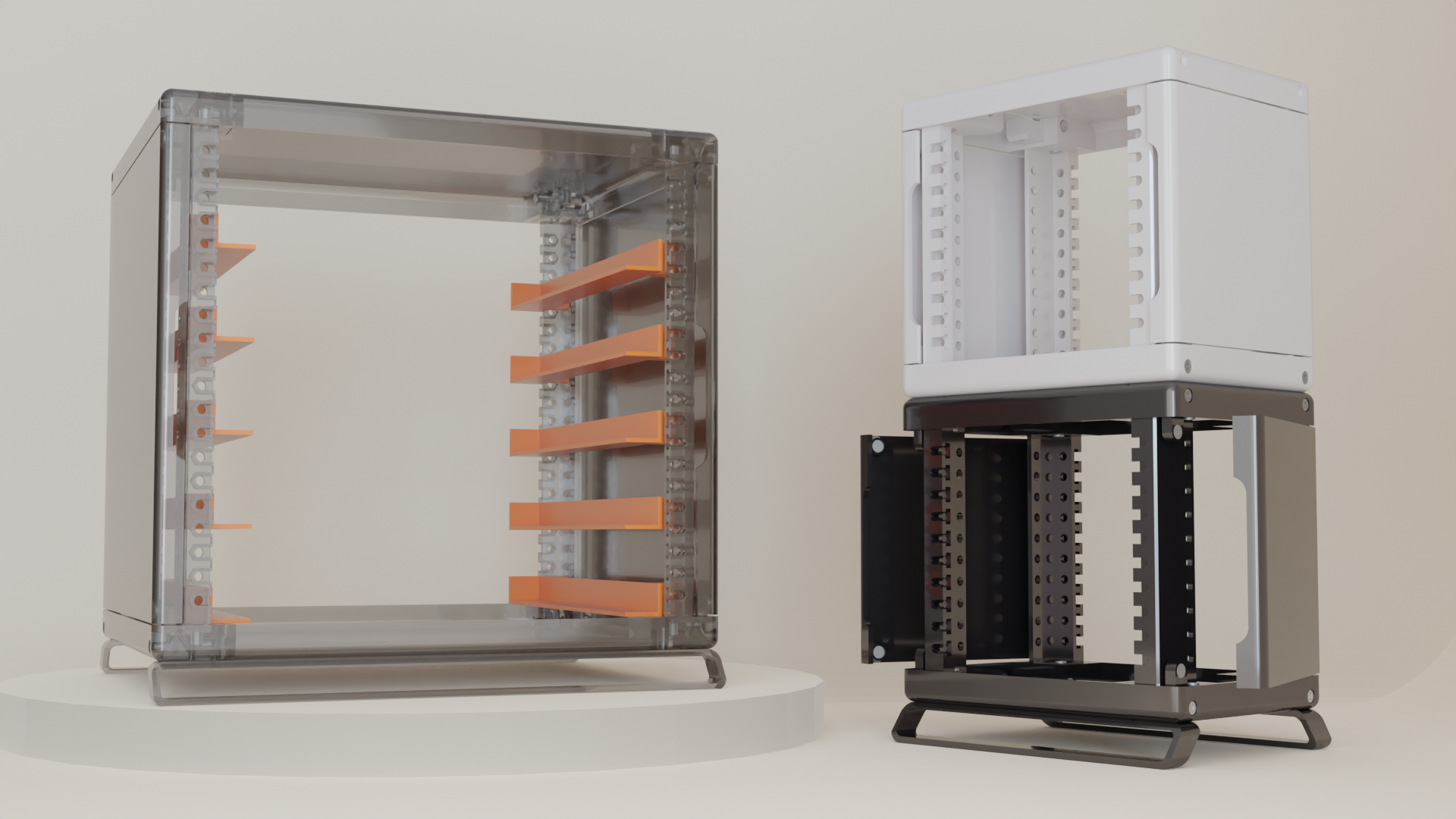

Renders

See the renders for difference parametric profiles here

Assembly

Pre-generated STLs for roughly 200mm^3, and 100mm^3 rack frames can be found in stl/rack. These STLs are generated from the files in rack/print, and rack-mount/print - further information about printing these parts (supports, orientation) can be found in their respective .scad files.

Assembly Instructions

BOM

TODO

A bunch of m3 screws for constructing the actual rack.
A bunch of m4 screws for the main rails
Some heatset inserts
A bunch of m3 hex nuts
m3 allen key (preferably with a rounded end)
m4 allen key
2 dowel pins
8 magnets

Configuring + Generating STLs
