Media Manager V2 Design & Architecture

Overview

The Media Manager V2 transforms the product image management experience from a simple upload utility to a full-featured "WYSIWYG" editor. It introduces a persistent "Draft" state, drag-and-drop reordering, and a robust generic synchronization engine that reconciles state between Google Drive (Source of Truth) and Shopify.

UI UX Design

Launch Logic

To work around Google Apps Script limitations (triggers cannot open modals):

1. Watcher Sidebar: A lightweight sidebar remains open, polling for selection changes.
2. Context Action: When a user selects a cell in Column A (Product Image), the sidebar presents a large "Edit Media" button.
3. Modal: Clicking the button launches the full Media Manager Modal.

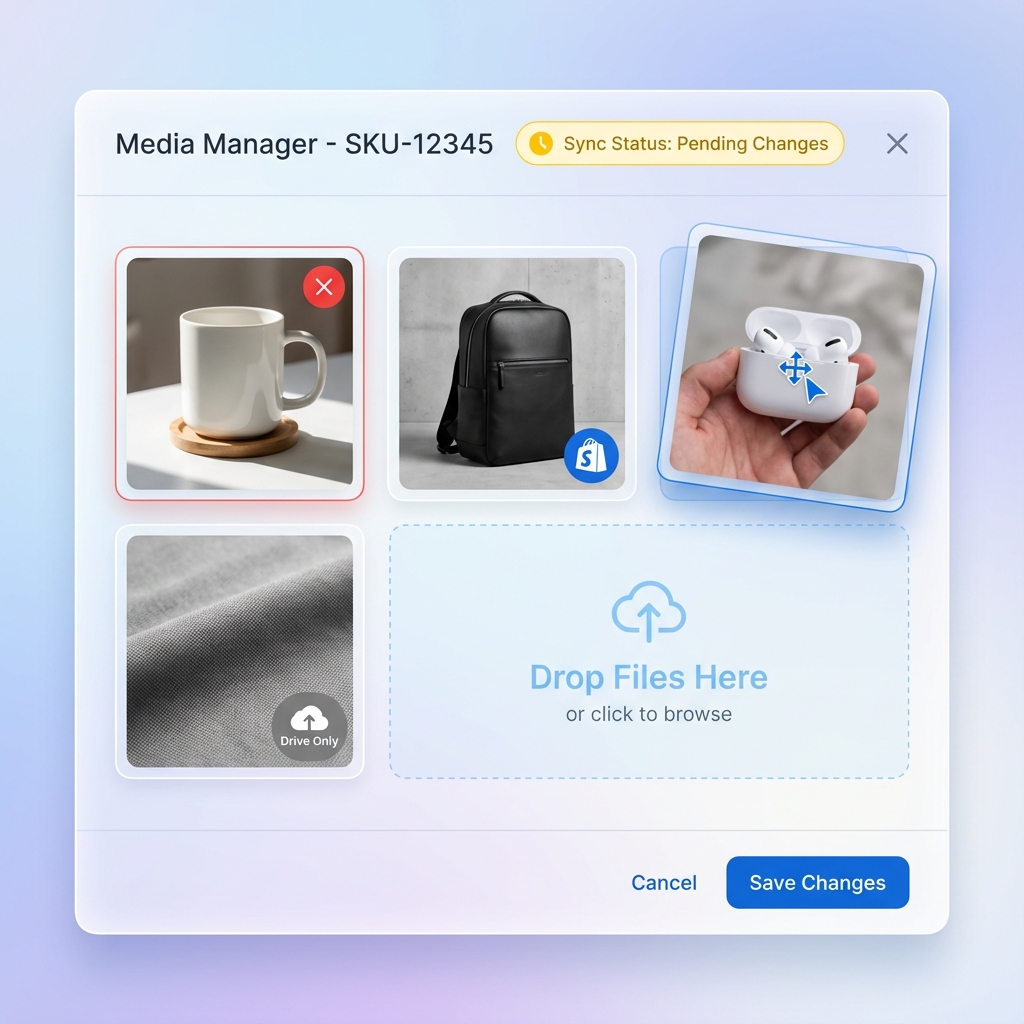

Interface Features

• Grid Layout: Drag-and-drop sortable grid.
• Badges:
  • ☁️ Drive Only: New uploads or files not yet synced.
  • 🛍️ Shopify Only: Media found on Shopify but missing from Drive (will be backfilled).
  • ✅ Synced: Verifiable link between Drive and Shopify.
• Video Support:
  • Grid: Videos play silently loop (muted autoplay).
  • Preview: Full modal with controls.
• Details Mode: A togglable text view listing pending operations (e.g., "Deleting 2 files, Reordering 3...").

Data Architecture

1. Naming Convention

Files in Drive function as the source of truth for order.

• Pattern: [SKU]_[Index].[Extension]
• Example: TSHIRT-001_0001.jpg, TSHIRT-001_0002.mp4
• Padding: 4 digits to support >10 items cleanly.

2. Session Recovery (Draft State)

To prevent data loss during browser refreshes or crashes, the edit state is persisted immediately to UserProperties.

• Storage: PropertiesService.getUserProperties()
• Key: MEDIA_SESSION_[SKU]
• Schema:

  {
    "schemaVersion": 1,
    "timestamp": 1234567890,
    "sku": "SKU-123",
    "items": [
      {
        "id": "drive_file_id_or_shopify_id",
        "source": "drive|shopify|new",
        "filename": "original_name.jpg",
        "status": "active|deleted|staged",
        "thumbnail": "data:image..."
      }
    ]
  }


3. Synchronization Logic (Two-Way Reconcile)

Phase A: Load & Match (Read-Only)

Executed when opening the manager.

1. Fetch: Get all Drive Files in SKU folder and all Shopify Media via GraphQL.
2. Match:
   • Strong Verification: Drive.appProperties.shopify_media_id === Shopify.media.id
   • Legacy Fallback: Drive.name === Shopify.filename (Only if no ID match)
3. Conflict Resolution: If duplicates found, prefer high-res/latest.

Phase B: Save (Transactional)

Executed when user clicks "Save".

1. Delete: Process items marked deleted (Remove from Shopify & Trash in Drive).
2. Backfill: Download "Shopify Only" items to Drive -> Set appProperties.
3. Upload: Upload "Drive Only" items -> Create Media -> Set appProperties.
4. Reorder: Execute productReorderMedia GraphQL mutation with final ID list.
5. Finalize:
   • Rename all Drive files to SKU_{index} sequence.
   • Clear MEDIA_SESSION_[SKU] property.

Technical Components

Frontend

• HTML/CSS: Glassmorphism aesthetic (Inter font, backdrop-filter).
• JS: Vanilla JS with HTML5 Drag & Drop API.

Backend Services

• MediaService: Orchestrates the Phase A/B logic.
• ShopifyMediaService: Handles GraphQL mutations (productCreateMedia, productReorderMedia).
• GASDriveService: Manages File renaming and appProperties metadata.

Future Proofing

• Metadata: We avoid relying on file hashes/sizes due to Shopify's aggressive image compression. We rely strictly on stored IDs (appProperties) where possible.
• Scale: Pagination may be needed if SKUs usually exceed 50 images (current limit 250 in GraphQL).

Development Roadmap

• Backend Implementation
  • Update getMediaForSku to return combined state (Drive + Shopify + Session)
  • Implement saveMediaChanges(sku, changes) transaction logic
    • Renaming files (SKU_####.ext)
    • Deleting/Trashing files
    • Uploading/Backfilling
  • Implement Session Recovery (Read/Write UserProperties)
• Frontend Implementation
  • Watcher Sidebar: Create MediaSidebar.html to poll for selection.
  • Manager Modal: Refactor MediaManager.html.
    • State Management (Staging)
    • Drag-and-Drop Grid
    • Preview Modal (Image + Video)
    • "Details..." View
• Verification
  • Manual Test: Drag & Drop ordering
  • Manual Test: Save & Sync
  • Manual Test: Session Recovery (Reload browser mid-edit)
