Ben Miller a27a0f08a2 reinforce front panel on keystone2
`plateThickness` parameter was not being passed to `keystone2()`, leading to very thin front panel that is easily cracked by keystone insertion.
2025-06-13 16:54:08 +00:00
..
Rewrite keystone.scad (#35)
2025-03-20 22:34:54 -04:00
animate.scad
Rewrite keystone.scad (#35)
2025-03-20 22:34:54 -04:00
entry.scad
Rewrite keystone.scad (#35)
2025-03-20 22:34:54 -04:00
patchPanel.scad
reinforce front panel on keystone2
2025-06-13 16:54:08 +00:00
README.md
Document what hardware is required for each rack mount items (#20)
2024-12-26 13:36:32 -05:00

README.md

Patch Panel

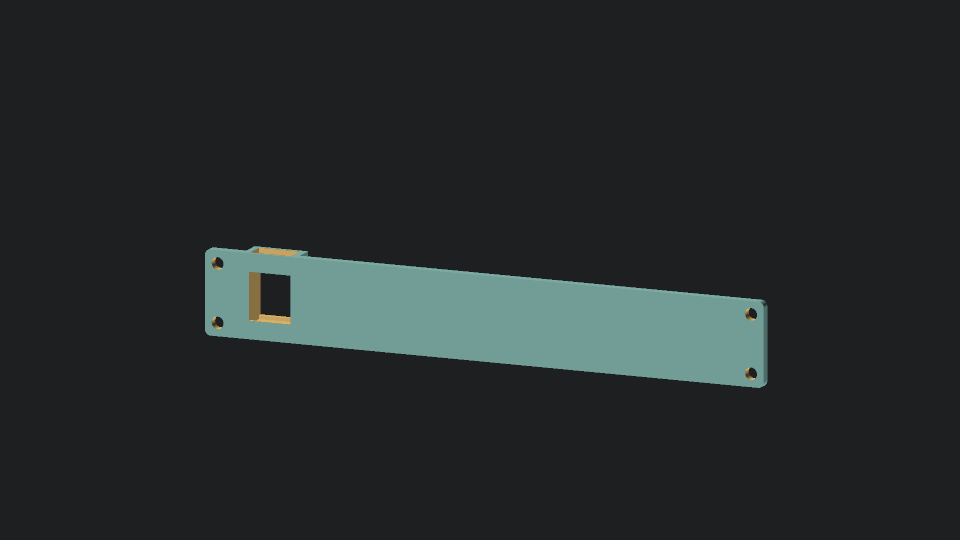

demo

Please see entry.scad for config and building. Make sure the correct rack profile is configured in rackFrame.scad.

  • Mount RJ-45 keystone jacks with this part.
  • Single part. Can be printed without supports.

BOM:

Item Name Quantity Comment
M4x12 FHCS 4 Extras are useful and inexpensive. If you plan on eventually stacking multiple racks together, don't hesitate to get a lot more.
M4 hex nut 4 ☝️
