README.md

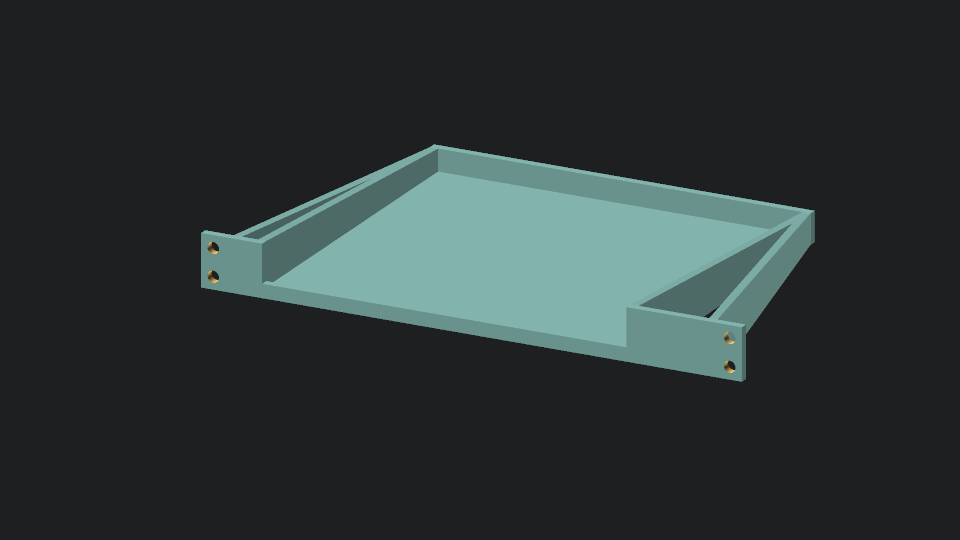

Tray Mounting System

Please see entry.scad for config and building. Make sure the correct rack profile is configured in rackFrame.scad.

Mount on front rails.
Single part. Can be printed without supports.
Includes support for custom bottom screws (see mountPoints in config). This is useful for SBCs and mini PCs with bottom screws.

BOM:

Item	Name	Quantity	Comment
	M4x12 FHCS	4	Extras are useful and inexpensive. If you plan on eventually stacking multiple racks together, don't hesitate to get a lot more.
	M4 hex nut	4	☝️
