# rackstack

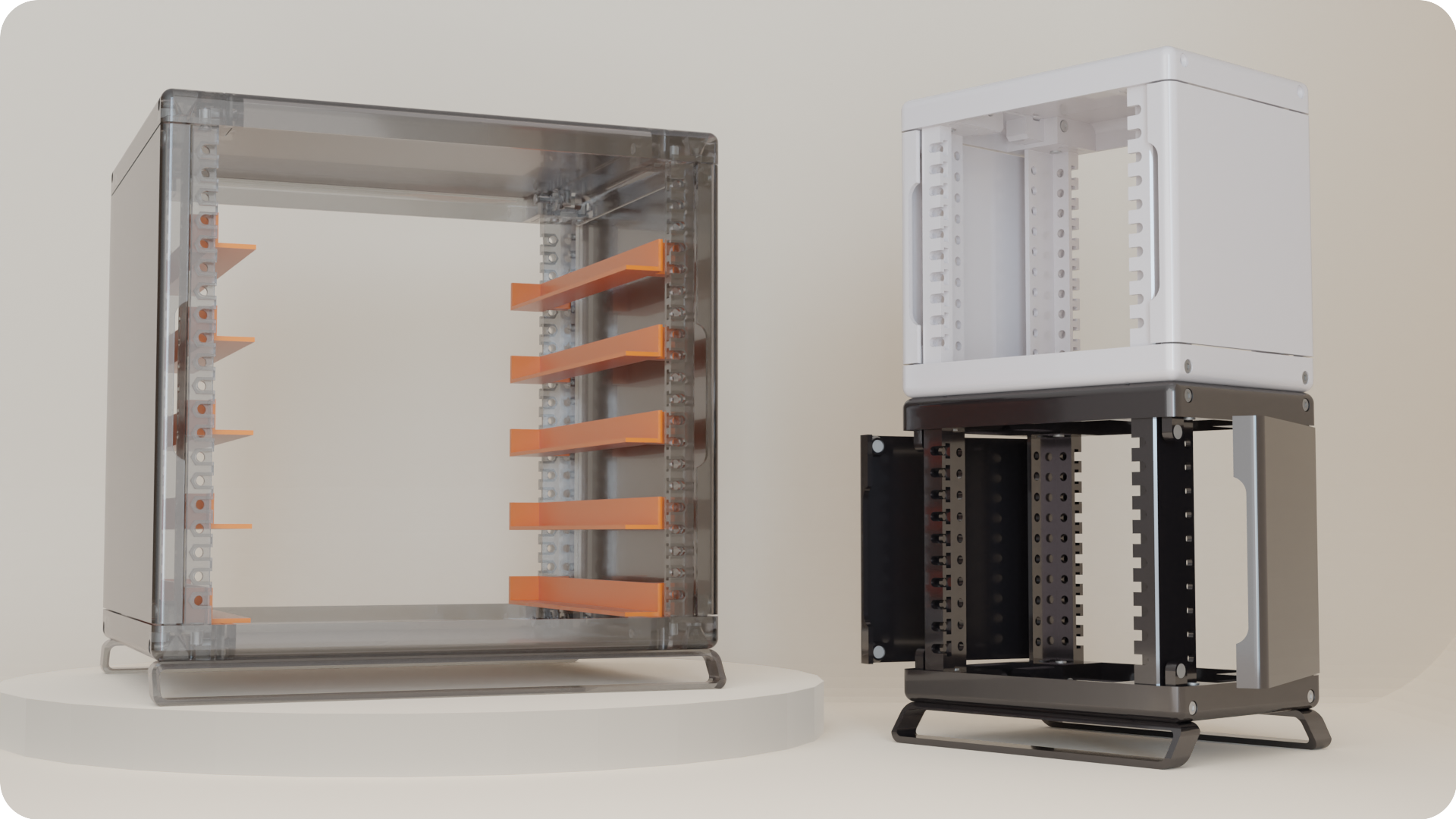

![display](media/renders/rackDisplayRounded.png)

### A parametric 3d-printable mini rack system
- ***Mount Anything:*** Perfect for organizing SBCs, mini PCs, small switches, power hubs, etc.
- ***Fully customizable:*** Fully written in OpenSCAD. Everything, from the dimensions of the rack, to the roundness of the corners, can be modified with a simple code change.
- ***Printable from home:*** Designed to be printed with conventional FDM printers. Requires minimal supports when printing, and final assembly needs only a few easy-to-source parts.
- ***No cage nuts!*** Sliding hex nut design for the front rails allows one to easily mount items without dealing with cage nuts.
- ***Stackable:*** Individual racks can be easily stacked and fastened together. Mix and match different color and design combinations!

### Renders
See the [renders for difference parametric profiles here](media/renders)

## Assembly

Pre-generated STLs for roughly 200mm^3 (mini), 170mm^3 (micro), and 100mm^3 (nano) rack frames can be found in [stl](stl).
These STLs are generated from the files in [rack/print](rack/print), and [rack-mount/print](rack-mount/print) - further information about printing these parts
(supports, orientation) can be found in these files.

### Assembly Instructions
Please see [the assembly README here](./assembly-guide)

### Required Tools:
- 3d FDM Printer - build size requirements depend on configured rack profile
- M3 Allen Key (for constructing the rack)
- M4 Allen Key (for mounting rack-mount items)

### BOM - Single Rack:

| Item                                                          | Name                      | Quantity | Comment                                                                                                                          |
|---------------------------------------------------------------|---------------------------|----------|----------------------------------------------------------------------------------------------------------------------------------|
| <img src="media/bom/fhcs_medium.gif"  height="60" width="72"> | M3x12 FHCS                | 20       | Extras are useful and inexpensive. If you plan on eventually stacking multiple racks together, don't hesitate to get a lot more. |
| <img src="media/bom/fhcs_long.gif"  height="60" width="72">   | M3x16 FHCS                | 16       | ☝️                                                                                                                               |
| <img src="media/bom/hex_nut.gif"  height="60" width="72">     | M3 hex nut                | 36       | ☝️                                                                                                                               |
| <img src="media/bom/dowel.gif"  height="60" width="72">       | 3x10 steel dowel pin      | 4        | 3mm diameter, 10mm height                                                                                                        |
| <img src="media/bom/magnet.gif"  height="60" width="72">      | 6x2 neodymium disc magnet | 8        | 6mm diameter, 2mm height                                                                                                         |
| <img src="media/bom/glue.gif"  height="60" width="72">        | super glue                | \>= 2ml  | Used to glue magnets to plastic                                                                                                  |

#### Notes:

- Omitted actual plastic for printing. Any conventional 3d printing plastic should do (PLA, PETG, ABS),
but beware of PLA's thermal limits. Higher infill is recommended for all parts.
- For joining two racks, you will need 8 M3 hex nuts, and 8 M3x12 FHCS.
- Main front rails use M4 hex nuts and screws.
- Side rails are mounted using M3 hex nuts and screws.


## Configuring + Generating STLs
A python script: `rbuild.py` is provided to generate different project stls.

Requirements:
  - `openscad` cli command (Only runs on Linux)
  - `python3`

### Examples:
Generate all project files for the `mini` profile:

`python3 rbuild.py -b all -c micro`

Generate specific part:

`python3 rbuild.py -b yBar`

Generated stls are put into the `stl/` directories. The actual variable values for different profiles can be found in
[rack/profiles.scad](rack/profiles.scad).
